Large Insulated Medical Kit 1L Plastic Container 06

Large Insulated Medical Kit 1L Plastic Container 06

Product Code

STP-4G57-EPS67-IP2-6x1L-58

Product type

Infectious Substances and Biological Substances

Description

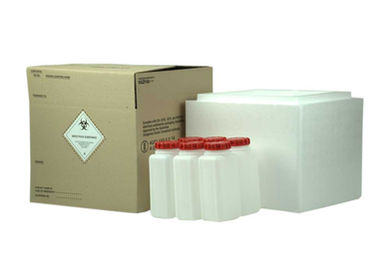

‘620/650 Insulated Specimen Transport Pack’ with fibreboard outer box, EPS insulating box, 6 x re-sealable plastic bags (Primary Receptacle), 6 x 1 L HDPE rectangular jars with 58 mm screw closure and annular gasket (Secondary Package) and 24 x absorbent pads for transport with chilling mediums or at ambient temperature.
IATA Compliant.
This package can be used with 1 or up to 6 x 1 L jars as per the client’s requirements.
Quantity of chilling medium will depend on the number of 1 L jars used.

NOTE:
If transporting UN 2814 or UN 2900 place the 6.2 Class label over the UN 3373 label, and mark proper shipping name over ‘Biological Substance Category B’ marking.
The absorbent material supplied absorb up to 200 mL of product. Additional absorbent pads can be purchased separately if required.

Falcon test engineers report no.:

4050

Download Product Information

Assembly & configuration of packaging

Four absorbent pads and re-sealable plastic bag are placed inside each of the ‘Hazpak’ 1 L HDPE jars and the lid screwed closed. The 1 L HDPE rectangular jars are inserted into the EPS insulating box and the EPS stabilising insert is placed on top. Close the EPS insulating box. The top flaps of the fibreboard outer box are closed and sealed using self adhesive tape. The box is labelled as required. If using dry ice, the box should be pierced in the position marked to allow for venting.

Note

Approval No.:	3378
UN Markings:	4G/CLASS 6.2/**/AUS/3378/HAZPAK
Packaging Group:	N/A
S.G.:	N/A
Internal Test Pressure:	180 kPa at Ambient and -95 kPa at +55 oC and -40 oC

PRODUCT DIMENSIONS:

Dimensions:	380 (L) x 380 (W) x 385 (H) mm
Nominal Volume	0.06 m3 per unit
Bulk Equivalent:	14.3 kg cubic (@ 250 kg/m3)
Mass of Empty Package:	2420 grams
