Medium Insulated Medical Kit 6 Test Tubes 01
Product Code
STP-4G20-EPS27-IP2-6xTS
Product type
Infectious Substances and Biological Substances
Description

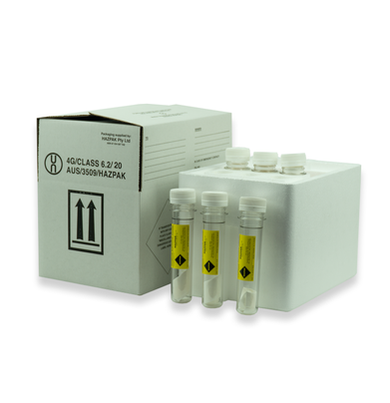

‘620/650 Insulated Specimen Transport Pack’ with fibreboard outer box, EPS insulating box, EPS cage support system and 6 x ‘Hazpak’ tube sets (Primary Receptacle and Secondary Package) for transport with chilling mediums or at ambient temperature.
IATA Compliant.
This package can be used with 1 or up to 6 x tube sets as per the client’s requirements.
Quantity of chilling medium will depend on the number of tube sets used.
NOTE: If transporting UN 2814 or UN 2900 place the 6.2 Class label over the UN 3373 label, and mark proper shipping name over ‘Biological Substance Category B’ marking.
Falcon test engineers report no.:
8558A
Assembly & configuration of packaging
‘Hazpak’ tube sets are inserted into the EPS cage support system and the EPS insulating box closed. Close and seal the fibreboard box with 48 mm pressure sensitive self adhesive tape in the same manner that the base of the box has been sealed. Add the required amount of absorbent material if specified. Label the box as required.
If using dry ice, the box should be pierced in the position marked to allow for venting.
(Make sure that the labels or any other markings are not obliterated or obscured in any way).
Note
The use of other packaging methods or components may render the approval of this package invalid.
Approval No.:Â | 3509Â |
UN Markings:Â | UN 4G/CLASS 6.2/##/AUS/3509/HAZPAKÂ |
Packaging Group:Â | N/AÂ |
S.G.:Â | N/AÂ |
Internal Test Pressure: | 180 kPa at Ambient and -95 kPa at +55°c & -40°c |
PRODUCT DIMENSIONS:Â
Dimensions: | 310 (L) x 220 (W) x 285 (H) mm |
Nominal Volume:Â | 0.02 m3Â per unit |
Bulk Equivalent:Â | 4.9 kg cubic (@ 250 kg/m3)Â |
Mass of Empty Package:Â | 1259 grams |
